Skiver Pealing Type

External and internal skiving can be done with ease and speed. Covering the whole range of hose types and sizes.

ELECTRICS
220V / 380V / 525V versions can be supplied
0.75 KW Motor is utilized driving a reduction gearbox / overload protection on motor

SPARES
Special Mandrels can be made as per customer’s request

HYDRAULICS

Oil reservoir: 34L S32 hydraulic oil (Inter STD)

DIMENSIONS / WEIGHT
Dimension: 350mm x 500mm x 280mm (High)Weight: 45 kg

OPTIONS
A safety cover over the skiving head is optional and will then be controlled through a foot switch operation

ACCESSORIES
Mandrels ¼” – 2” (threaded type stem / quick change stem) Internal and external

PACKING
Packed securely in a crated box complete with 9 sets of mandrels (ON REQUEST AT AN ADDITIONAL COST)

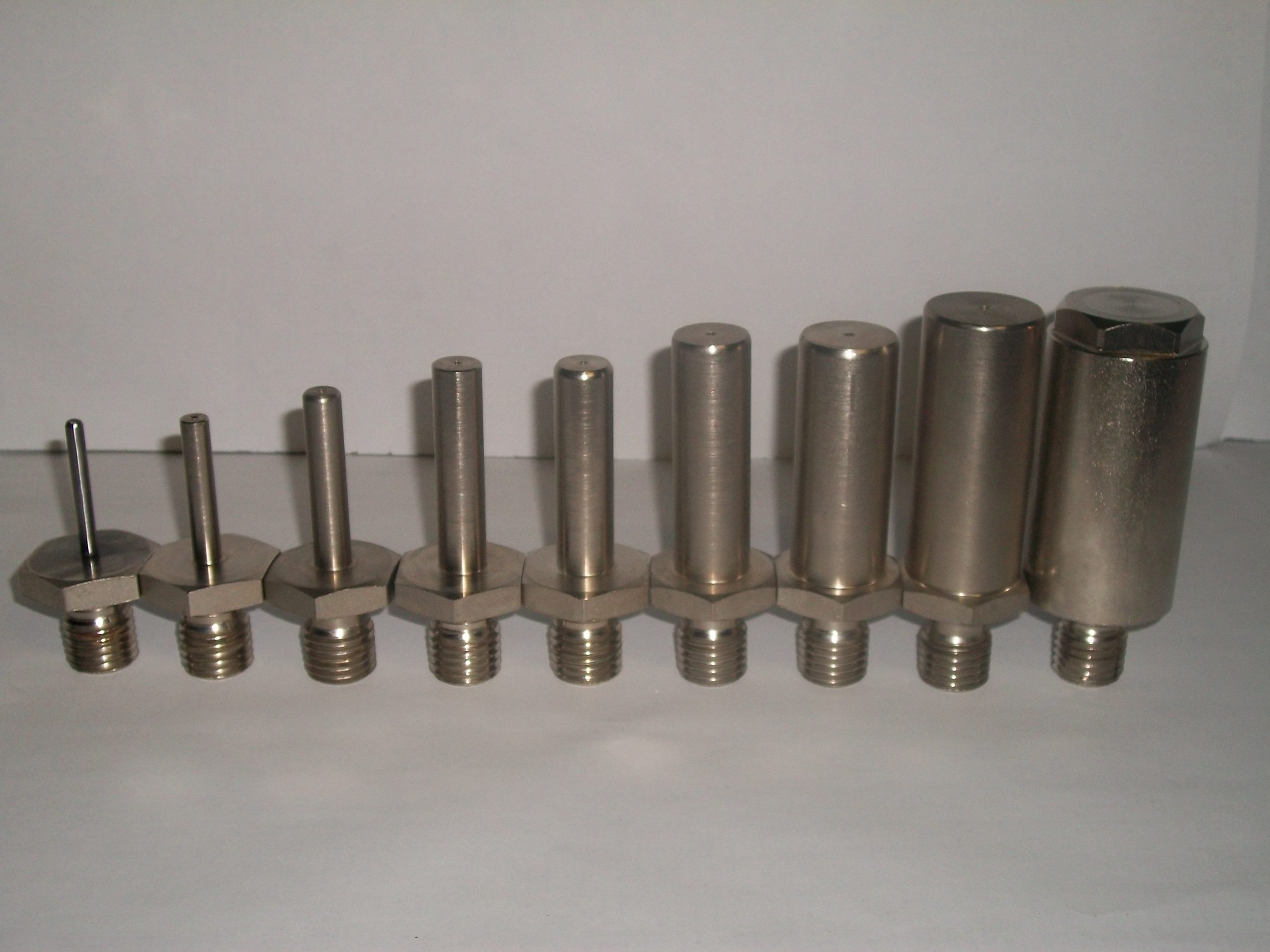

External Skive Mandrels Thread Type.
Standard Sizes from 1/4″ – 2″ Available in nickel plated finish.

External Skive Mandrels Quick change type.
Standard sizes 1/4″ – 2″ available. Hardened & Ground.
Long lasting.

Threaded and Quickchange also avaialable in internal sizes 3/4″ – 2″ manufactured.

External Skive Mandrels Thread Type.
Standard Sizes from 1/4″ – 2″ Available in nickel plated finish.

External Skive Mandrels Quick change type.
Standard sizes 1/4″ – 2″ available. Hardened & Ground.
Long lasting.

Threaded and Quickchange also avaialable in internal sizes 3/4″ – 2″ manufactured.
